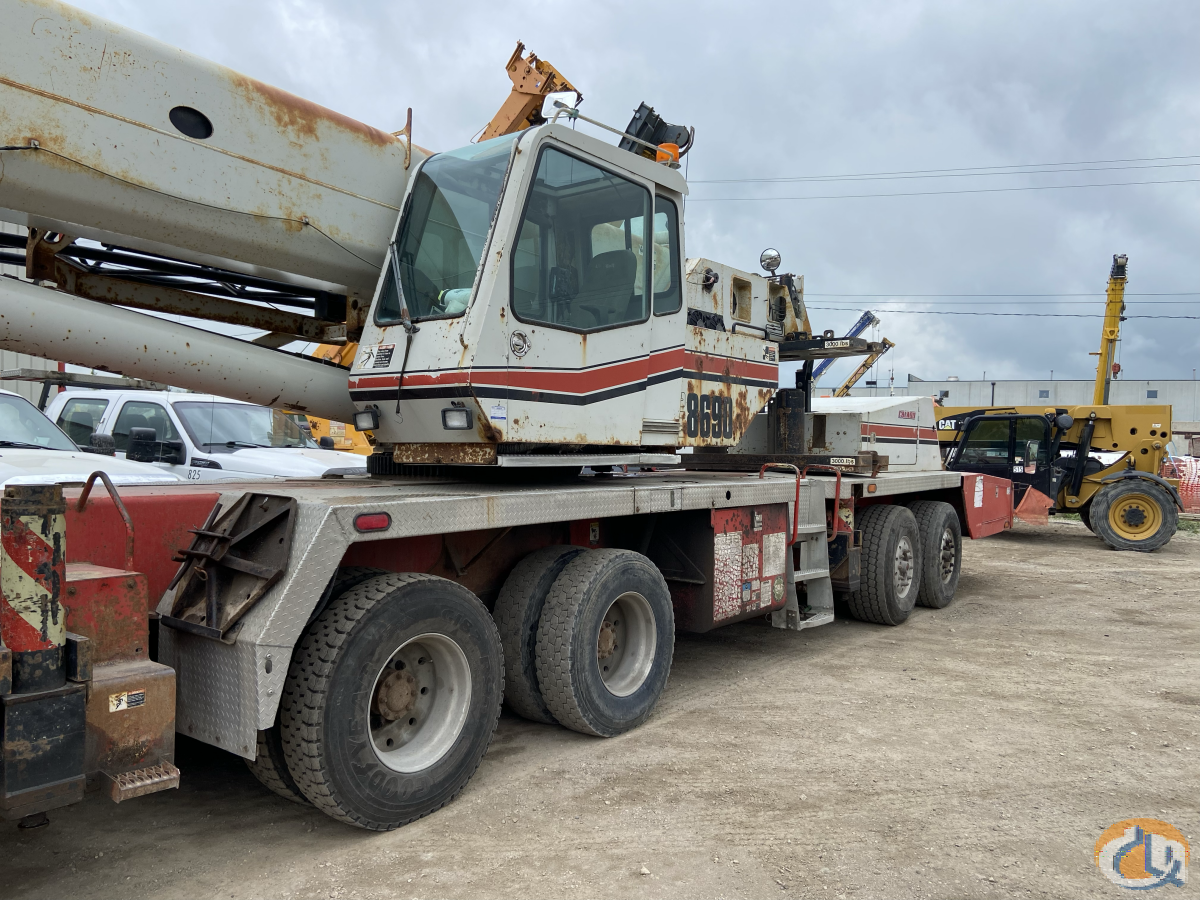

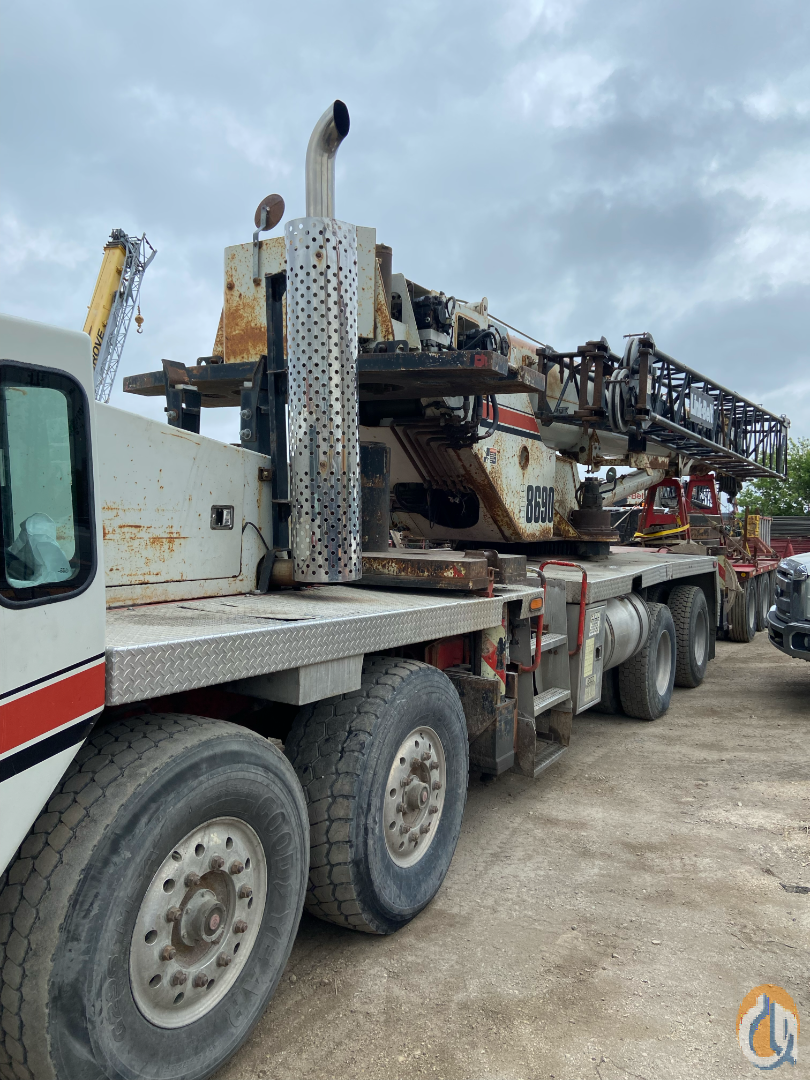

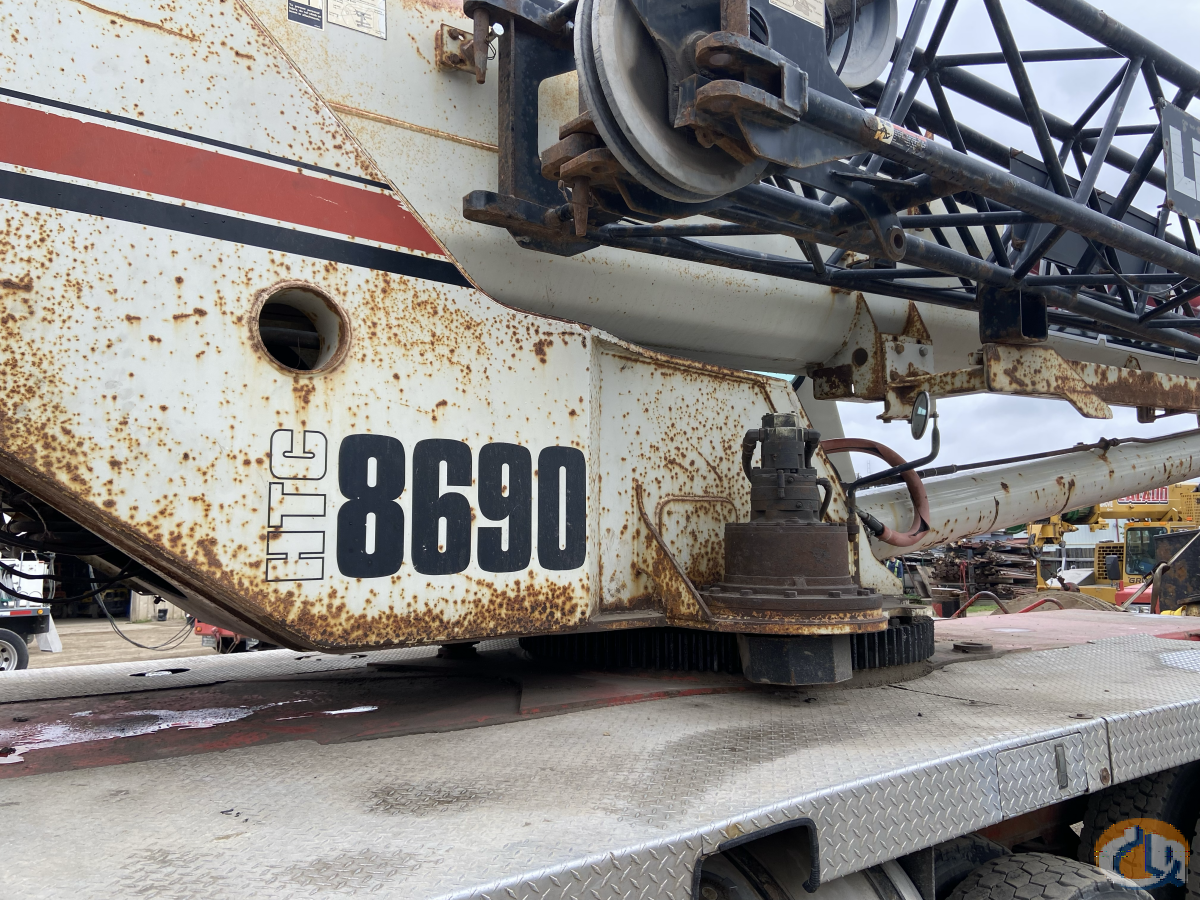

2005 Link-Belt HTC8690, 90 Ton, Hydraulic Truck Crane; CranesList ID: 1002,

• 38'-140' Five Section Full Power Boom,
• 35'-58' Offsetable Bi-fold Fly/Jib (2°, 15°, 30°, 45°),
• Main and Auxiliary Winches with 3/4" Wire Rope,
• Boom Angle-Length Indicator, Drum Rotation Indicator, Two Speed, Link-Belt Rated Capacity Limiter (RCL) with Anti-Two Block,

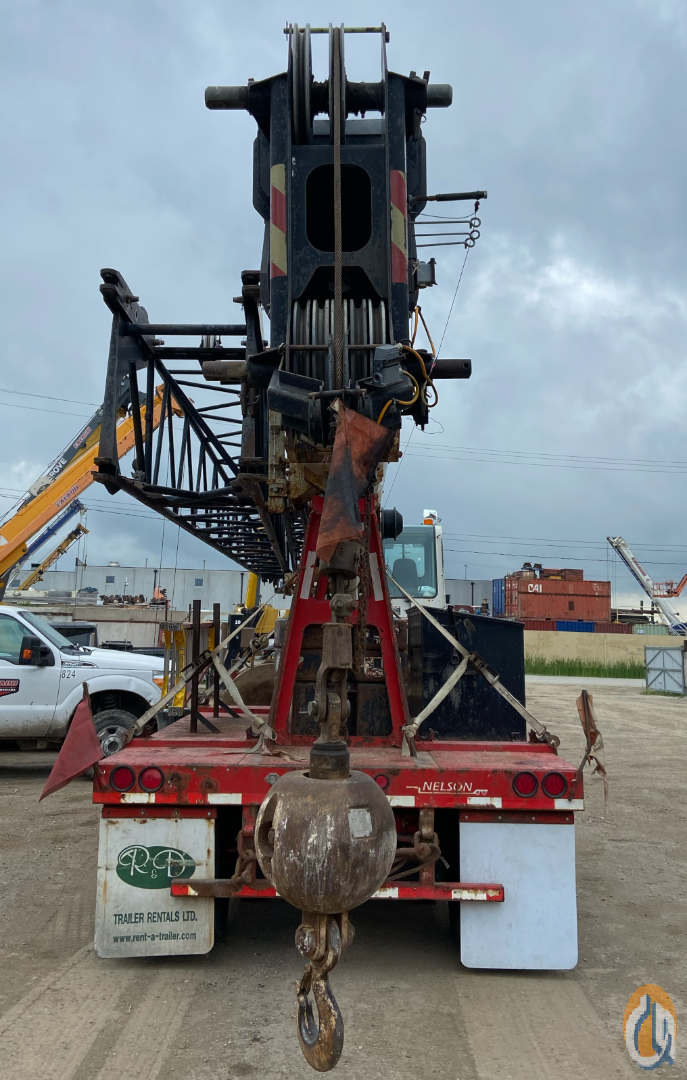

• Hook Ball,
• 39,500# Counterweights hydraulically removable con­trolled from the operator's cab,
• Roof hatch window,

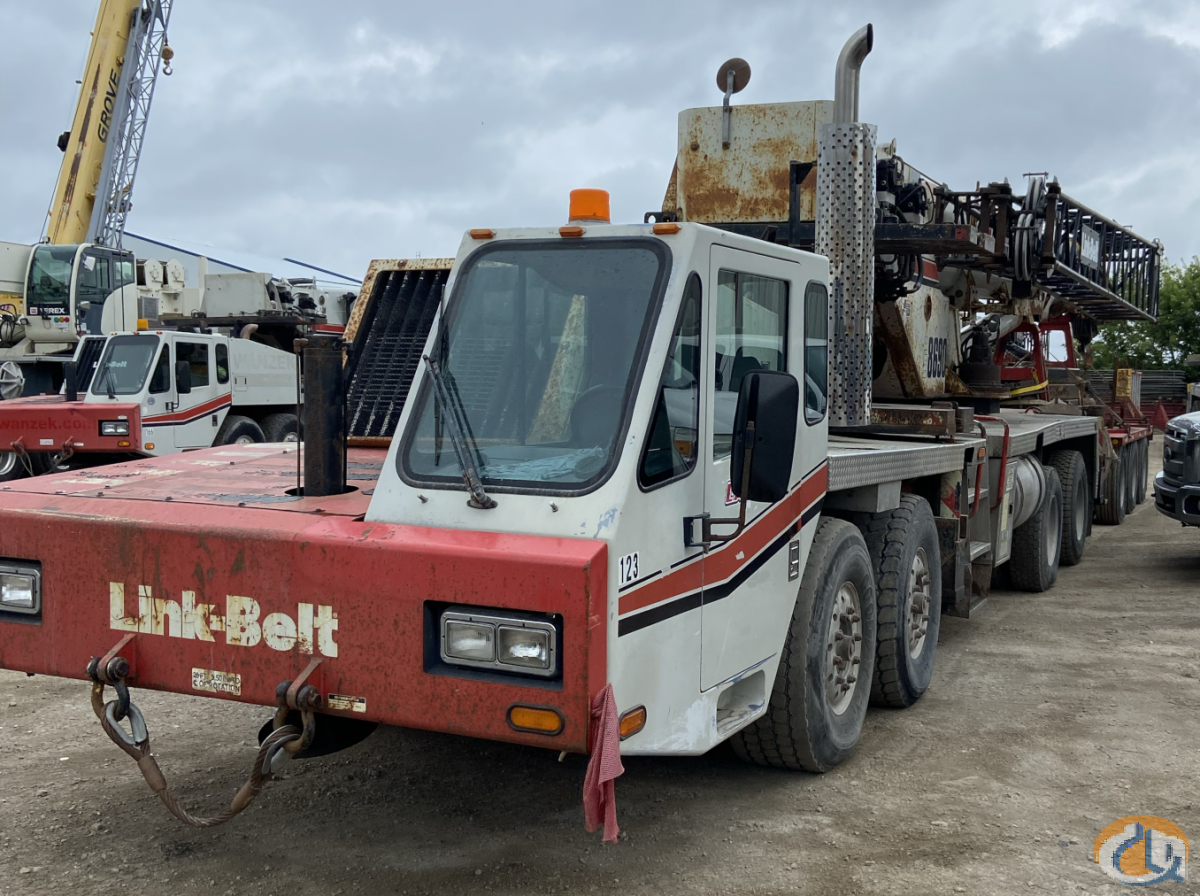

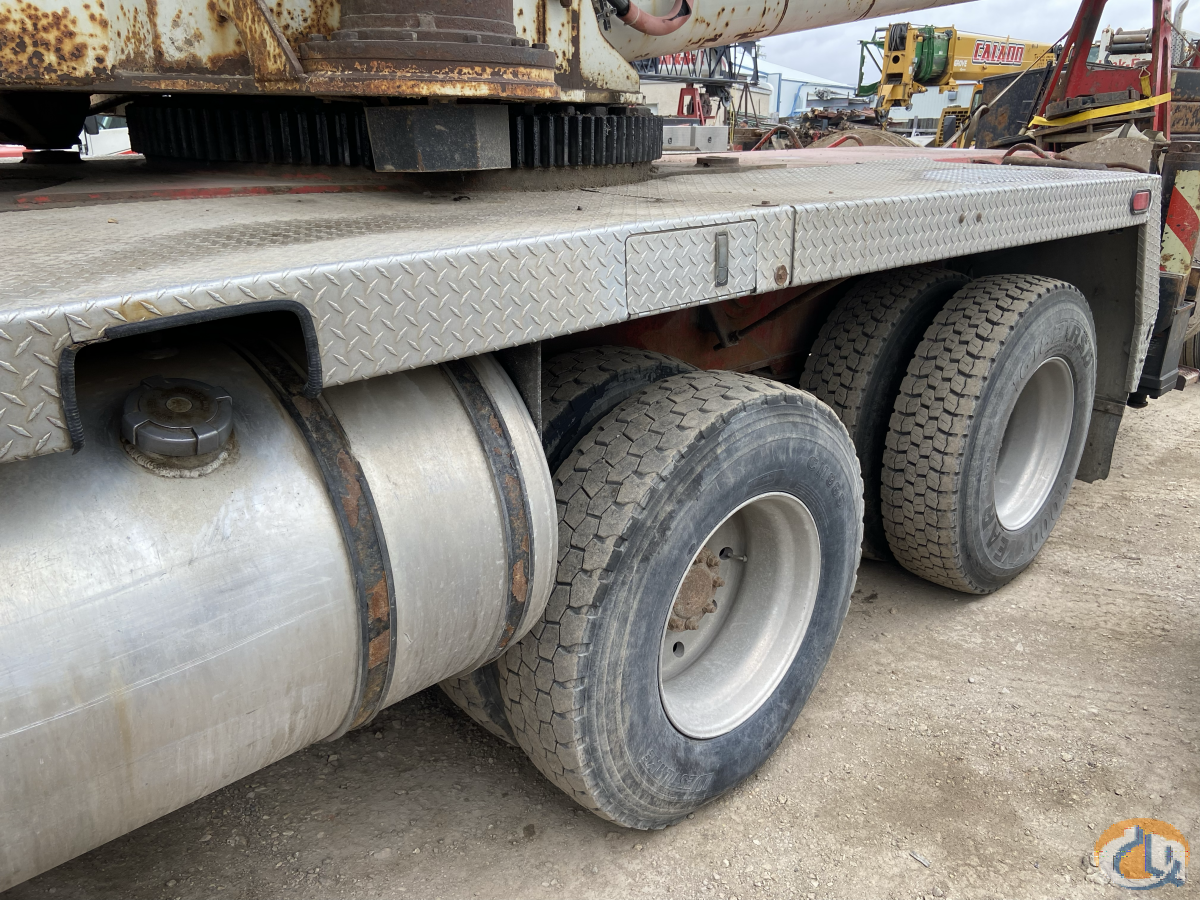

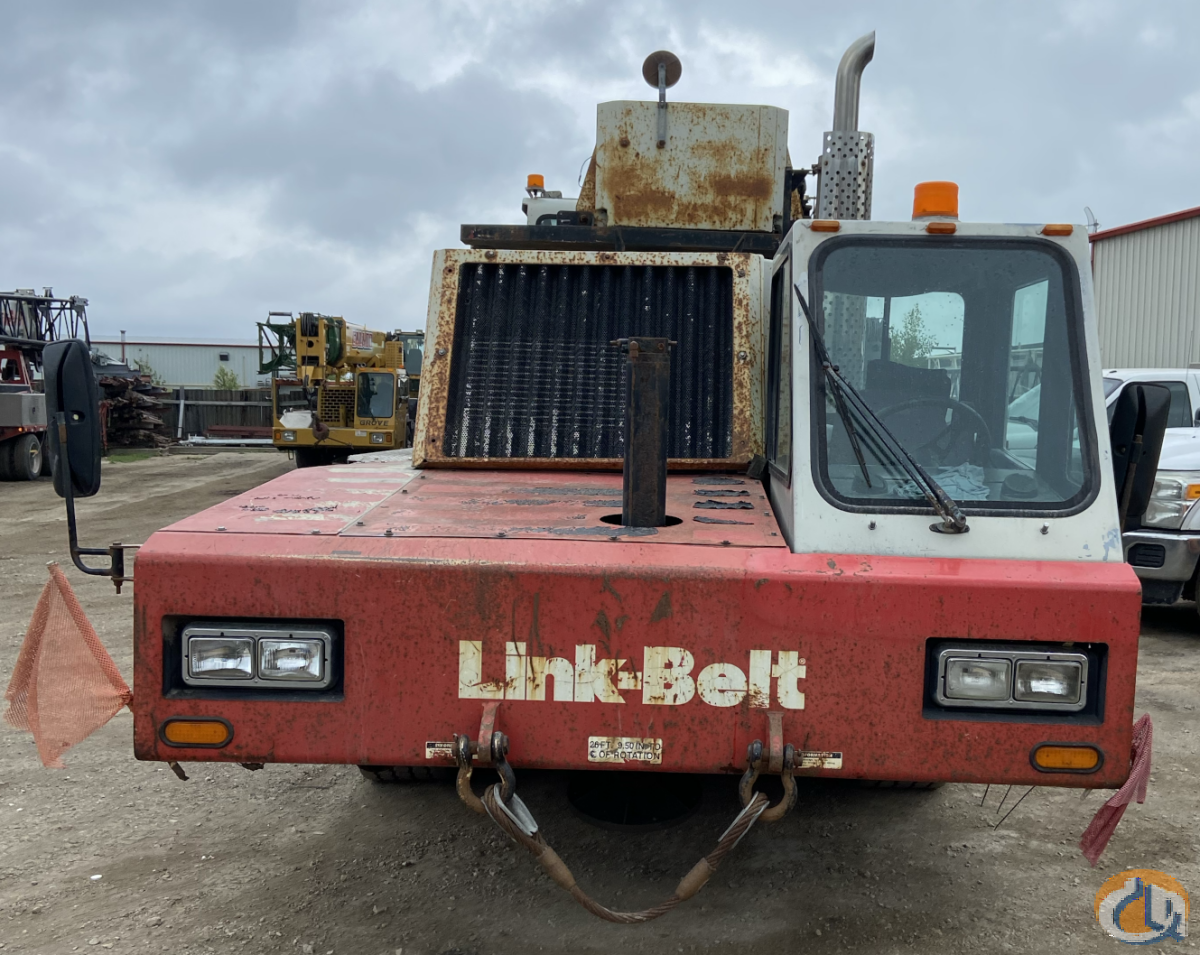

• 8' 6" Wide 8 X 4 Link-Belt Carrier,
• Detroit Series 60 Engine, 455 HP, Diesel Engine - SUBJECT TO FINAL CONFIRMATION,
• Automated ZF AS Tronic ZF12-AS-2302 12 Speed Forward and 2 speed reverse Manual Transmission - SUBJECT TO FINAL CONFIRMATION,

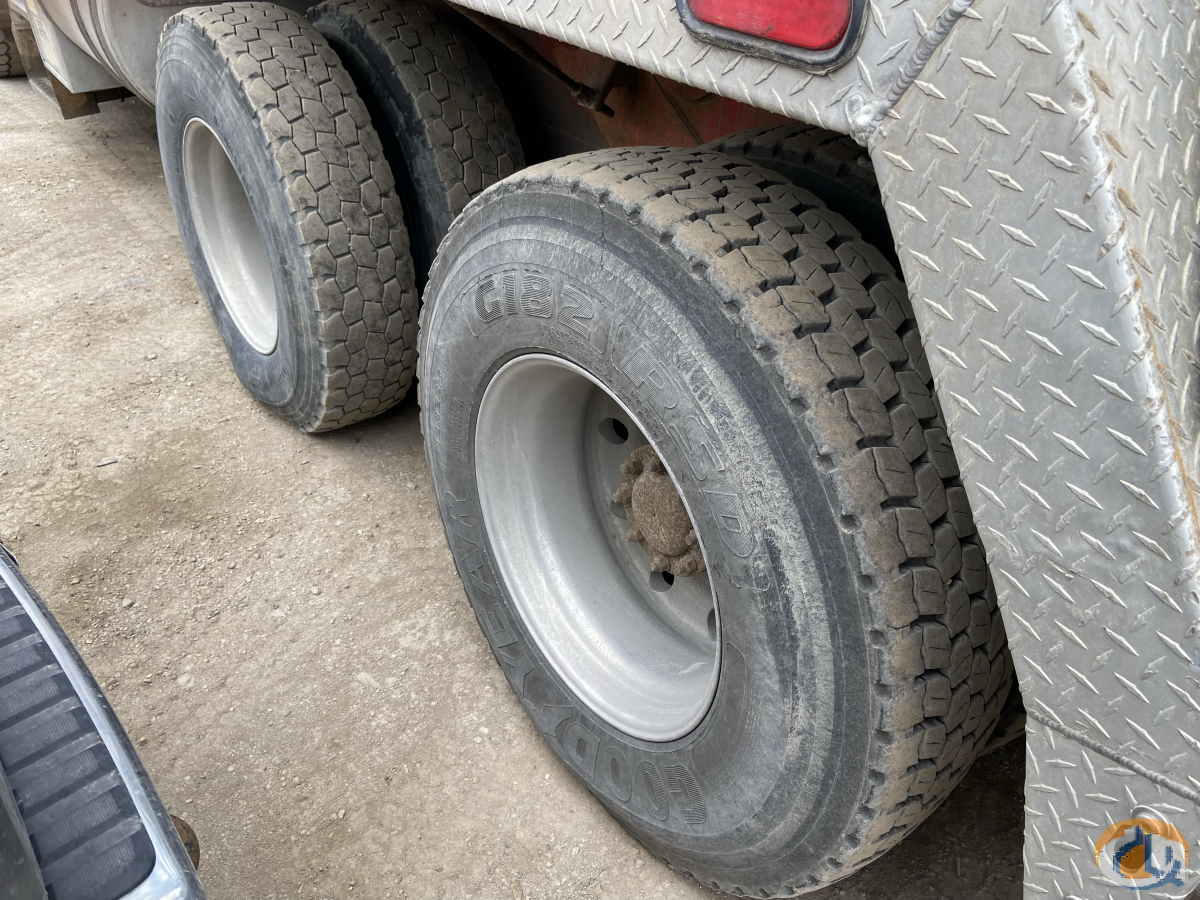

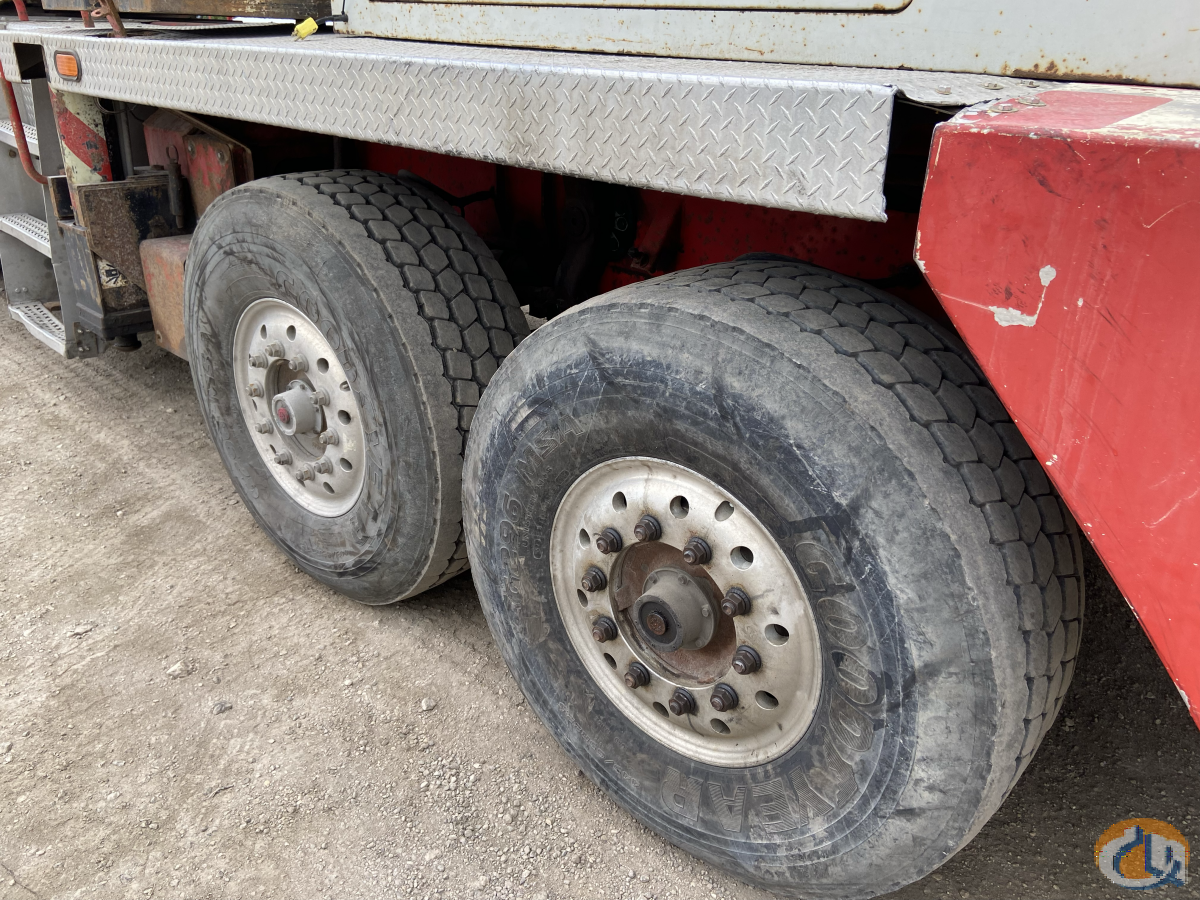

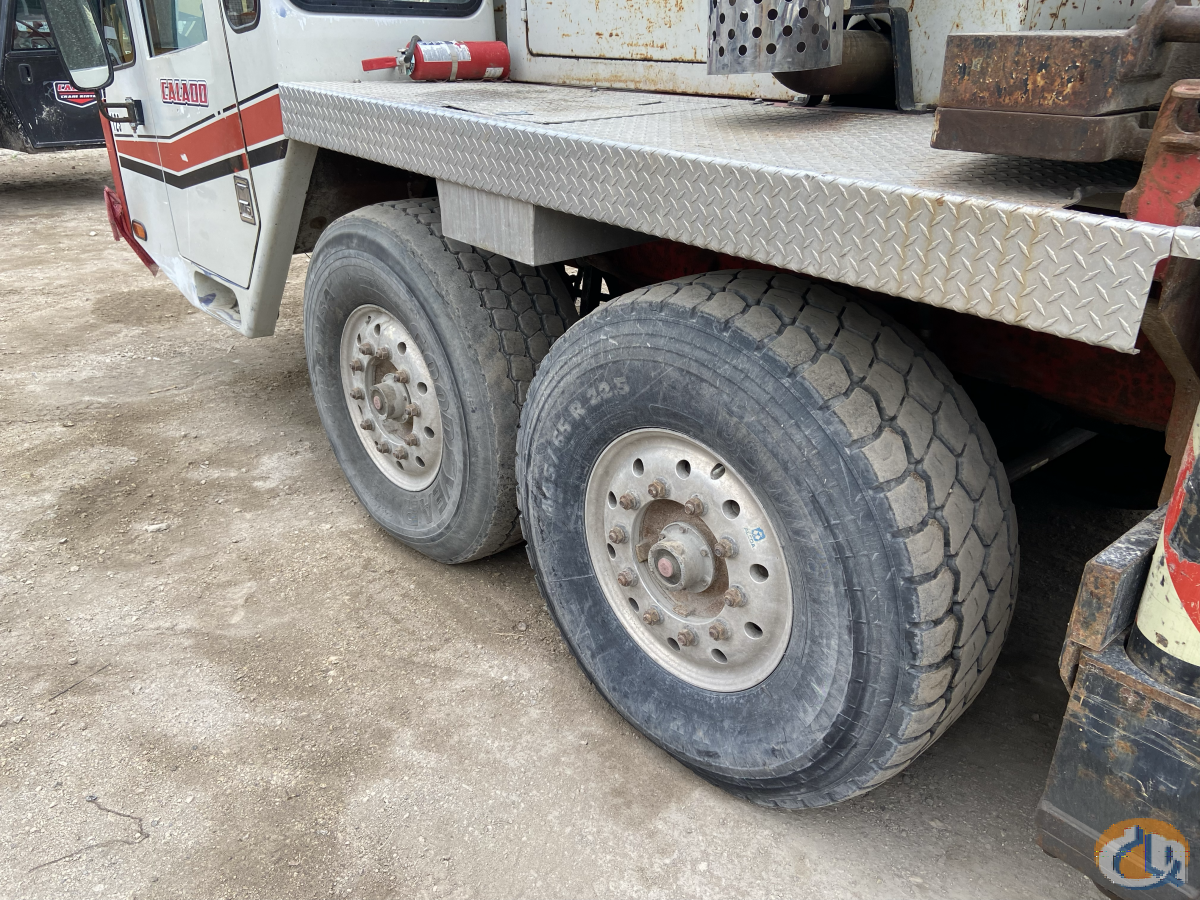

• Front Tires: 445/65 R22.5 - SUBJECT TO FINAL CONFIRMATION,

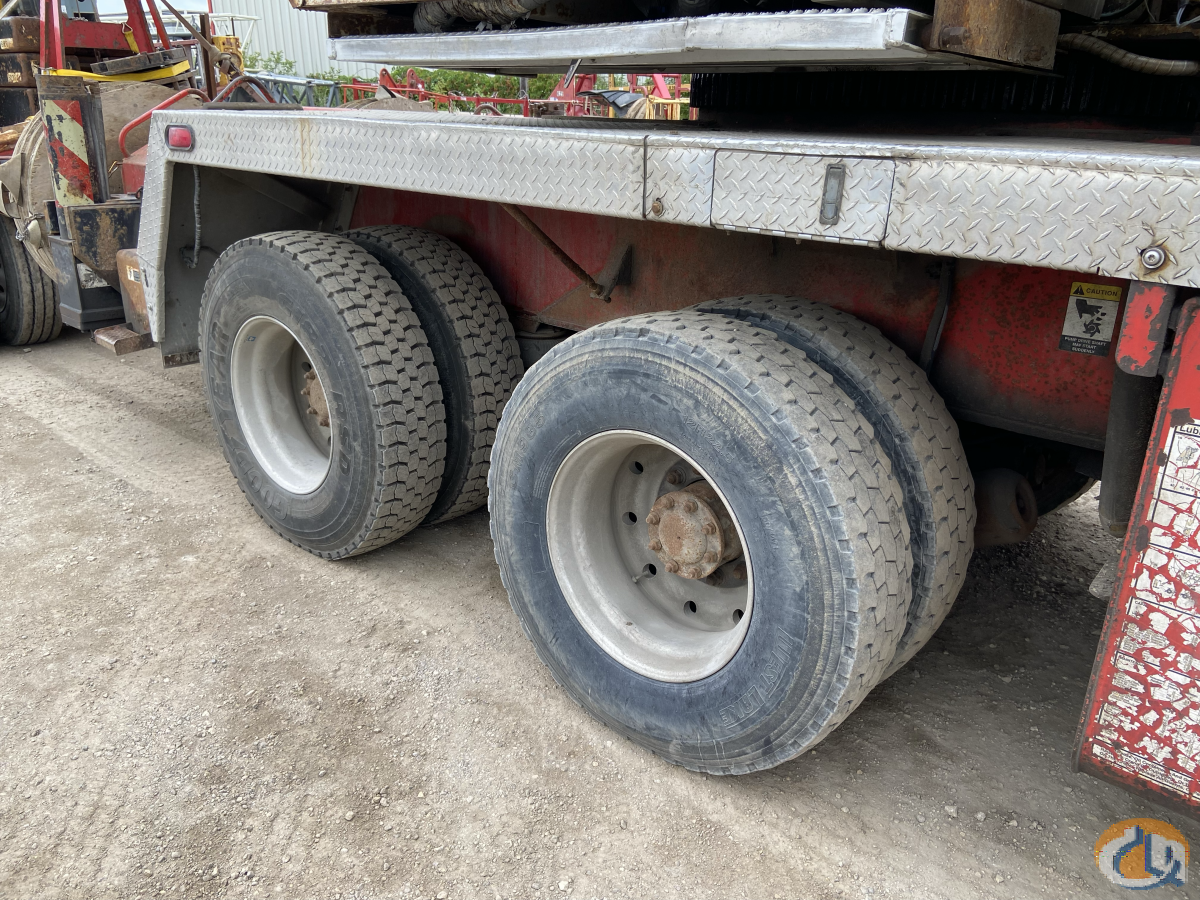

• Rear Tires: 305/85 22.5 - SUBJECT TO FINAL CONFIRMATION,
• Front And Rear Raydan Air Link walking beam air suspension,
• Alcoa Aluminum Disc Wheels,
• (CALC) Confined Area Lifting Capacities Outriggers with hexagonal steel pontoons,
• 5th Front Hydraulic Outrigger,
• Aluminum Outrigger Pads,
• Aluminum Diamond Plate Decking,

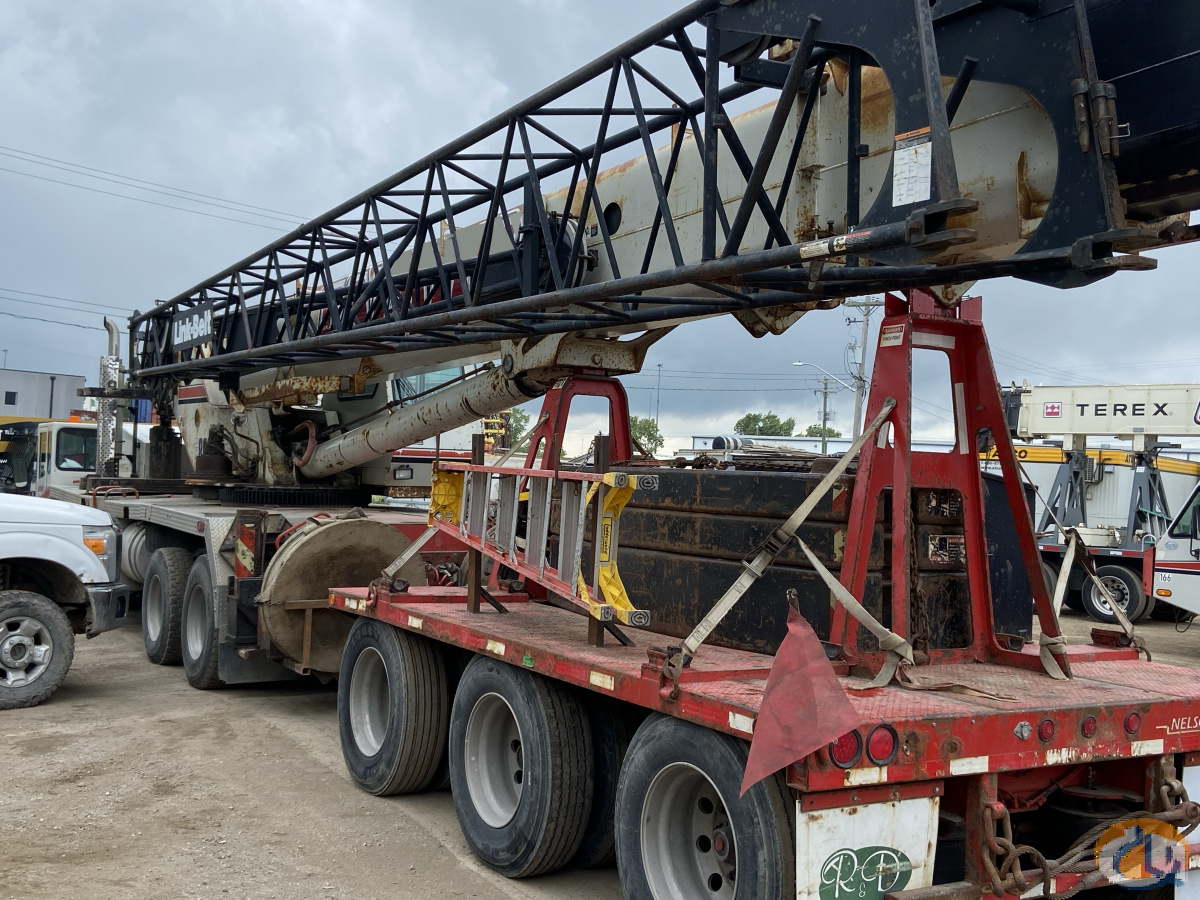

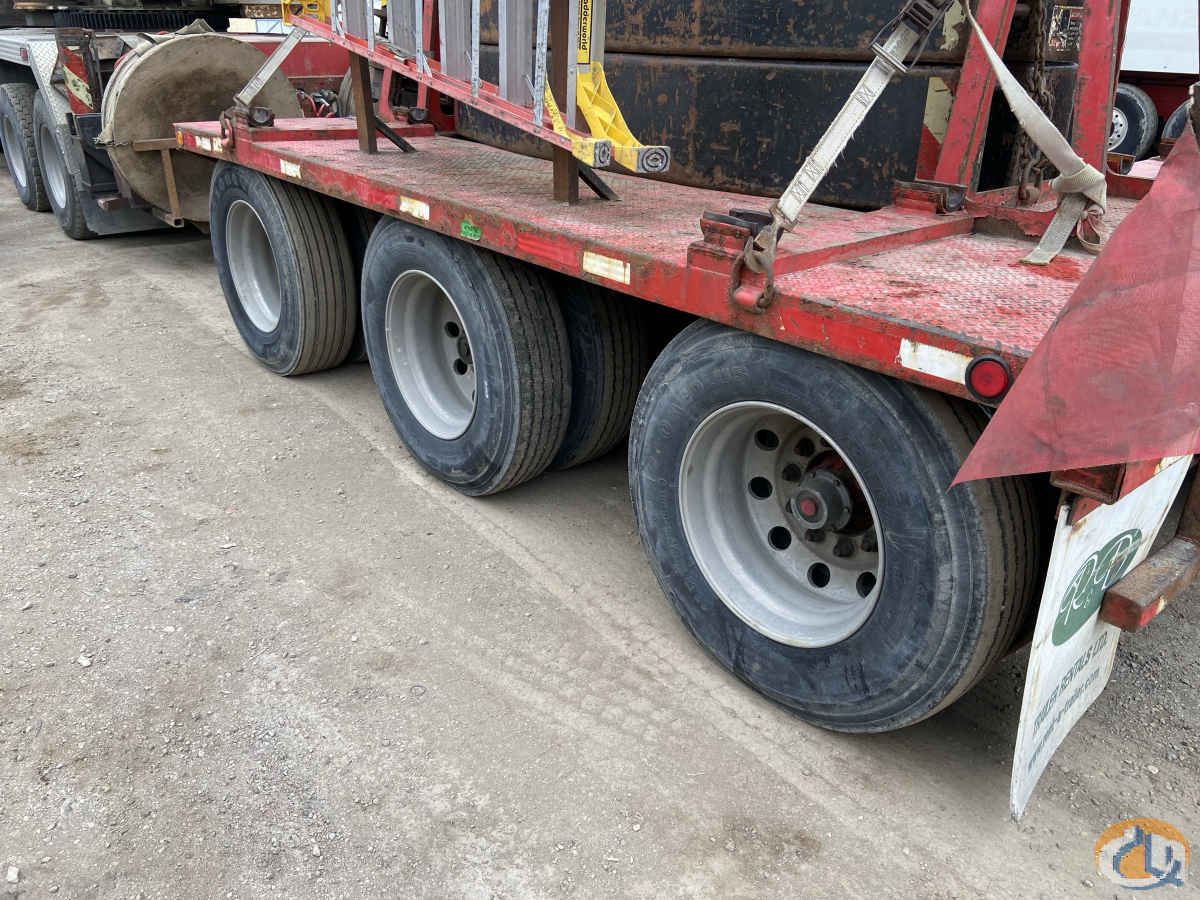

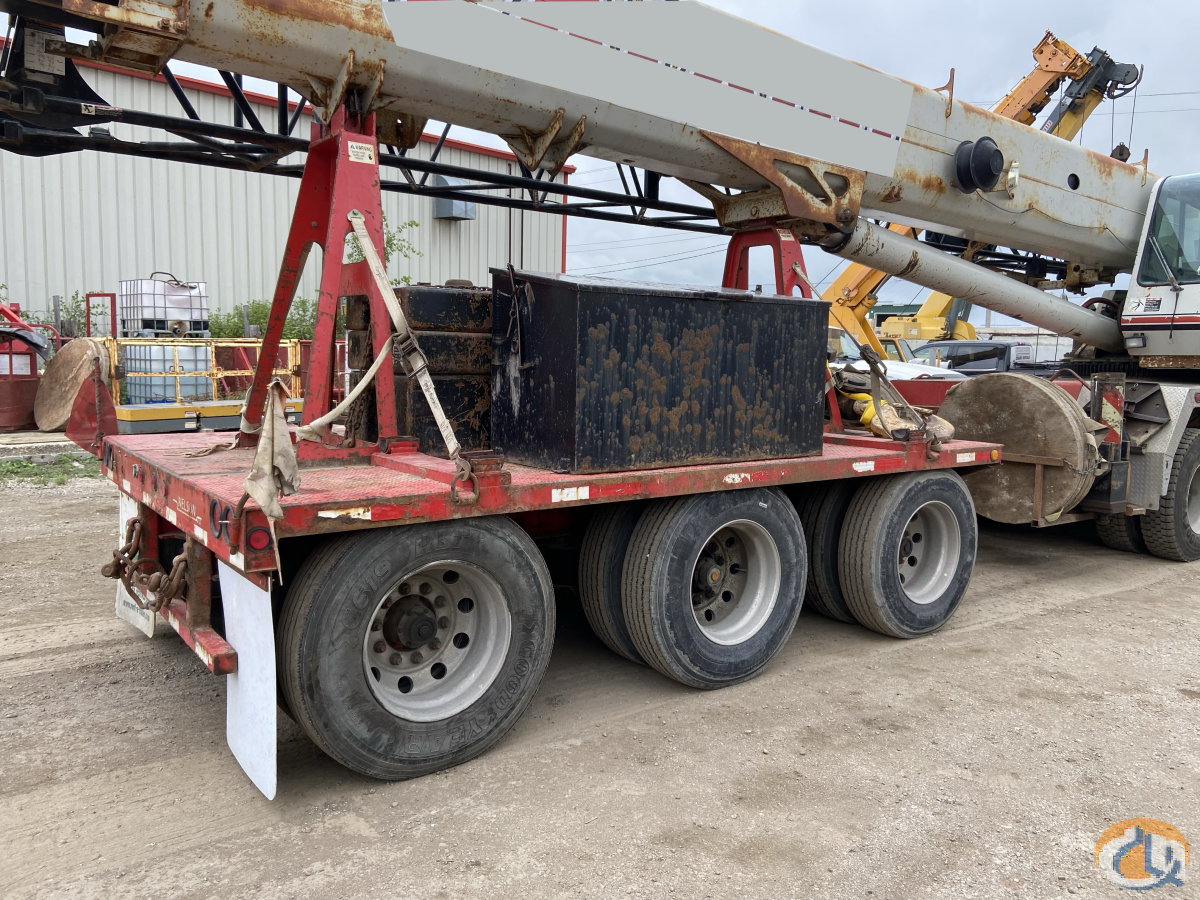

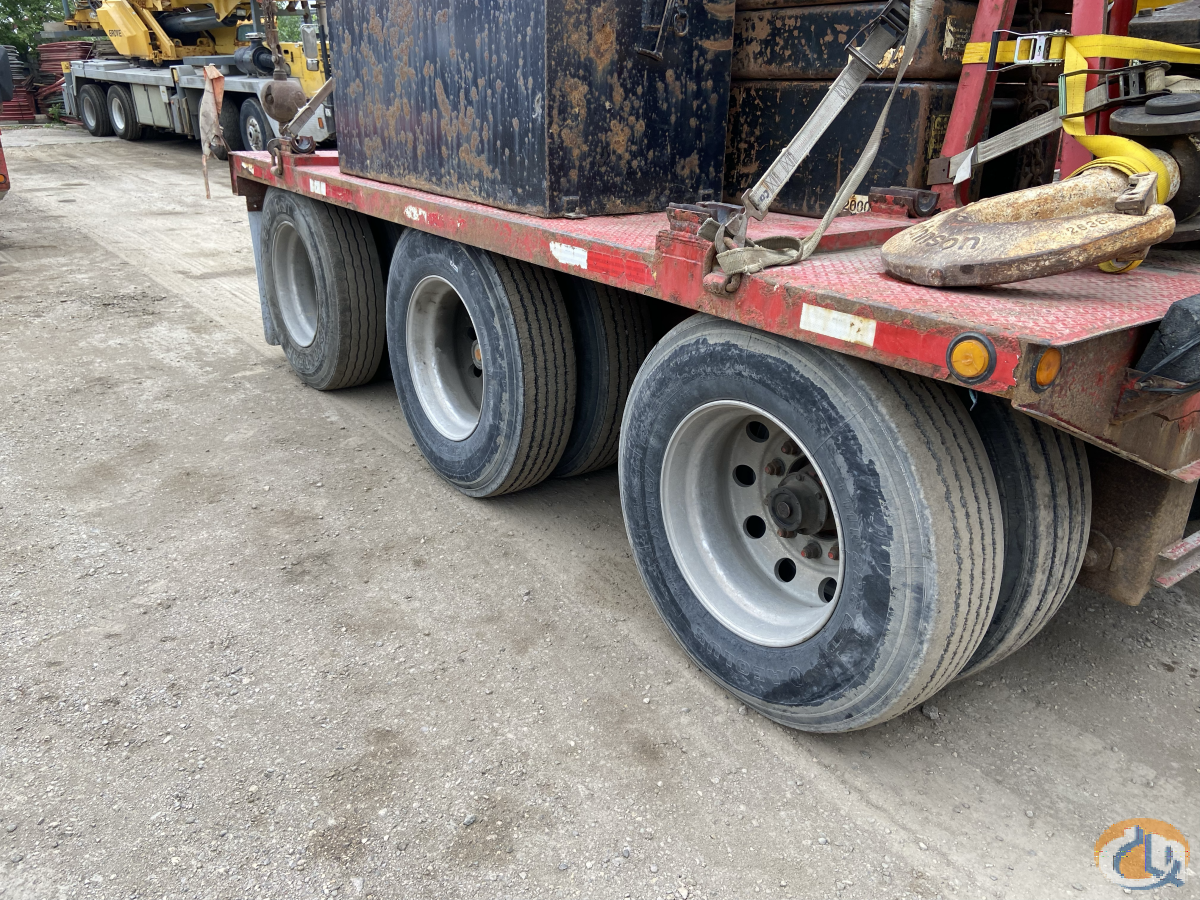

• Three Axle Boom Dolly,

http://www.CranesList.com,

LOCATED IN MANITOBA CANADA!
